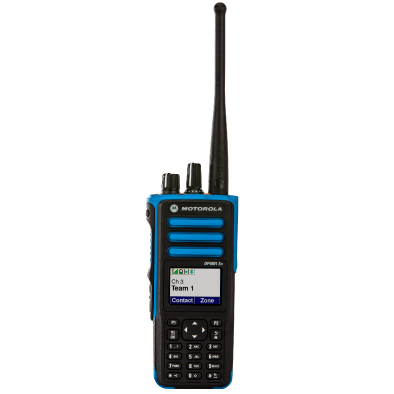

DP4801 EX 136-174 1W FKP GPS GOB PBE302HEGEX

DP4801 EX 136-174 1W FKP GPS GOB PBE302HEGEX

Features
• VHF (136-174MHz); UHF1 (403-470MHz)
• 1000 channels
• Large Full-colour, 5-line display - operating in Day or Night mode for easy viewing
• Tri-colour LED for clear visual feedback on radio operating status
• Easy-to-use menu navigation keys enable intuitive user interface
• Full Alphanumeric Keypad enables flexible radio operation and text messaging
• Large, textured push-to-talk button for ease of use
• 5 programmable buttons to improve ease-of-use and increase operator efficiency
• Emergency button to help ensure rapid response to critical incidents
• Quick, easy-to-use Group, Individual and All-call capability
• Digital Phone Patch capability
• Sophisticated Emergency Calls help ensure employee safety
• PTT ID helps improve communications efficiency and system discipline
• Remote Monitor features help ensure employee safety and enable fast assessment of remote user status
• Elegant channel scanning schemes help ensure calls are received first time every time
• Privacy Features
• VOX Capability
• Transmit Interrupt
• Man Down
• Lone Worker
• 5 Tone Signalling
• Factory Installed Option Board
• Integrated GPS
• Over the Air Programming
• Intelligent Audio allowing the radio volume to automatically adjust to compensate for background noise.
• IP67 ingress protection (also certified to the highest ingress protection available under ATEX/IECEx test
conditions - IP64)
• Direct Mode (Including Dual Capacity Direct Mode) / Repeater Mode
• IP Site Connect (Conventional Multiple Site Coverage)
• Capacity Plus (Single Site Trunking)
• Linked Capacity Plus (Multi Site Trunking)
Standard Package
• 2075mAh (Typical) Li-ion Battery (NNTN8359_)
• IMPRES Single-Unit Charger Options
• Antenna Options
• Dust Cover (15012157001)
• 2.5" Belt Clip (PMLN6086_)
• In-box Documentation
NOTE 1: The 24 months warranty only applies to the radio, it does not apply to batteries or accessories shipped
within the model package. Service From the Start packages are also available.
NOTE 2: Bulk models (...B) are to be ordered in multiples of 20, and are shipped without single packaging.
Technical Data
Potential Self-quieting Frequencies to be avoided:
VHF: 139.200MHz±10KHz, 144.000MHz±10KHz, 148.800MHz±10KHz, 151.000MHz±10KHz,
151.740MHz±10KHz, 153.600MHz±10KHz, 158.400MHz±10KHz, 163.200MHz±10KHz, 168.000MHz±10KHz,
171.900MHz±10KHz, 172.800MHz±10KHz
UHF: 403.200MHz±10KHz, 408.000MHz±10KHz, 412.800MHz±10KHz, 416.000MHz±10KHz,
422.400MHz±10KHz, 432.000MHz±10KHz, 440.000MHz±10KHz, 441.600MHz±10KHz, 449.550MHz±10KHz,
451.200MHz±10KHz, 456.000MHz±10KHz,
460.800MHz±10KHz, 468.000MHz±10KHz
Rating:
Gas: ATEX: Class II 2G Ex ib, IIC T4 Gb, IECEx: Ex ib IIC T4 Gb
Dust: ATEX: Class II 2D Ex ib, IIIC T130°C Db, IECEx: Ex ib IIIC, T130°C Db
Mining: ATEX: Class I M2 Ex, ib I Mb, IECEx: Ex ib I Mb
